  • Compact footprint ideal for medical carts and bedside use
  • Integrated rf IDEAS WaveID® Plus dual-frequency contactless card reader, 125 kHz / 13.56 MHz
  • Convenient tap in, tap out
  • Integrated HID® TouchChip TCET Module
  • Works with leading identity platforms to support passwordless, multifactor authentication using badge and biometric credentials
  • Supports ePrescribe (EPCS) workflows
  • Backlit keys with three illumination levels for low-light environments
  • Smooth silicone surface designed for frequent disinfection
  • LinkSmart cleaning button with optional San-a-Key® software
  • Detachable USB for easy removal and servicing without disturbing the cabling bundle
  • All functions routed through a single USB conserves thin and zero client ports
  • Color: Black

Use Cases

Clinical Authentication

Supports badge, biometric, and multifactor authentication workflows in healthcare environments requiring secure access to patient information.

ePrescribe Environments

Supports multifactor authentication workflows used in DEA-compliant electronic prescribing environments.

Healthcare Workstations

For shared nursing stations and clinical desktops requiring secure authentication, rapid user transitions, and habitual disinfection support.

Key Challenges Addressed by the Product
Mobility plus limited space

Medical carts and bedside stations need compact devices that don’t interfere with workflow.

Secure access to patient data

Shared workstations must support fast, reliable authentication to protect PHI.

Frequent cleaning

Keyboards must withstand repeated disinfection without degrading usability.

Compact design for mobile clinical workflows

Smaller footprint fits easily on medical carts and bedside workstations, supporting care delivery without sacrificing usability.

Integrated multifactor authentication

Combines RFID badge reading and fingerprint biometrics into a single device, supporting secure logon workflows and protection of patient information.

Acts as a Desktop Endpoint Security Hub

Consolidates authentication and access control into a single device at the workstation — reducing reliance on separate peripherals while strengthening security at the endpoint.

Designed for routine disinfection

The smooth, crevice-free silicone surface can be wiped, sprayed, or scrubbed, helping reduce cross-contamination risk at shared workstations.

Supports low-light clinical environments

Backlit, laser-etched keys with three levels of illumination allow continued productivity in darkened patient rooms.

Conserves thin and zero client ports

All integrated functions — keyboard input, RFID badge reading, and biometric authentication — are routed through a single USB connection, helping to preserve limited ports on thin and zero clients while reducing the need for additional external devices.

  • Compact size, ideal for mobile carts and where space is limited
  • LinkSmart push-to-clean keyboard locking system
  • Optional San-a-Key® software with onscreen cleaning guide and scheduling
  • Durable, chemical-resistant silicone surface
  • Three levels of backlit illumination
  • Quiet, soft-touch full travel keys for clinical environments
  • Detachable USB for easy removal from carts or workstations
  • Integrated HID® TouchChip TCET Module
  • Integrated rf IDEAS WaveID® Plus dual-band contactless proximity card reader
  • Multifactor authentication support
  • ePrescribe-ready
  • Compatible with leading healthcare SSO platforms
  • Medical carts and mobile workstations
  • Bedside charting in patient rooms
  • Nursing stations with limited space
  • Clinical environments requiring low-light visibility
  • Shared healthcare desktops requiring secure authentication
  • Compatible with Imprivata® Enterprise Access Management, AuthX, and other leading healthcare SSO environments
  • Positioned for ePrescribe-ready workflows in healthcare settings
  • Windows 11, Linux, macOS, IGEL OS
  • HIPAA
  • FIPS 201
  • DEA ePrescribe-ready

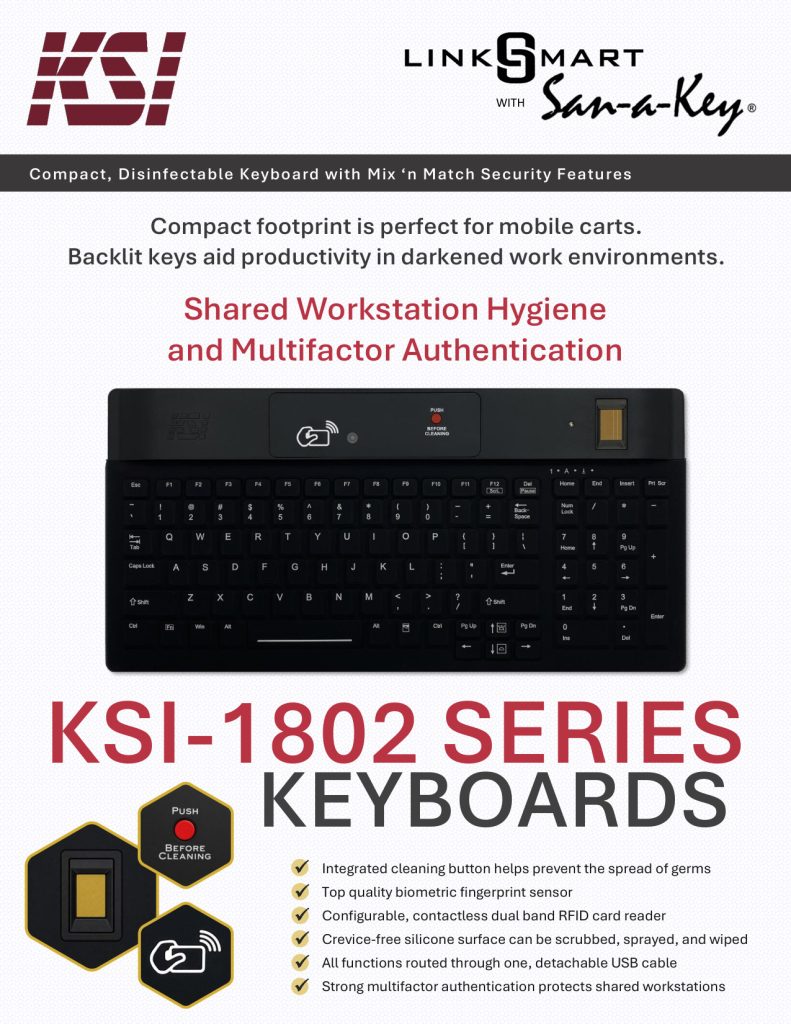

The KSI-1802R SX HFFFB-21 is a compact, disinfectable medical-grade keyboard designed for healthcare environments that require both infection control and secure desktop access. The keyboard integrates a dual-frequency contactless proximity card reader, biometric fingerprint sensor, and cleaning button into a single device optimized for mobile and space-constrained workstations.

With backlit keys for low-light visibility, a smooth silicone surface for routine disinfection, and LinkSmart cleaning technology, the keyboard supports clinical workflows without interruption. By combining multiple authentication and infection control functions into one compact endpoint, the KSI-1802R reduces device clutter while strengthening security at the point of care.

Is the keyboard designed for medical carts?

Yes. The compact footprint is ideal for placement on medical carts and at bedside.

Does the keyboard support multifactor authentication?

Yes. The keyboard integrates both an RFID card reader and fingerprint biometrics to support MFA workflows.

Can the keyboard be used in low-light patient rooms?

Yes. The keyboard includes backlit keys with three levels of illumination for visibility in dark environments.

How is the keyboard cleaned safely?

The LinkSmart cleaning button disables keys during cleaning, and the silicone surface supports wiping, spraying, and scrubbing using most hospital-approved cleaning products.

Is this product compatible with Imprivata?

Yes. The integrated authentication components are compatible with leading healthcare SSO platforms, including Imprivata.
Dimensions: 15″ W x 7-3/8″ D x 1-5/16″ H
Weight: ~2.2 lbs
Interface: Detachable USB
Color: Black
Card Reader Specifications
  • rf IDEAS WaveID® Plus OEM-805N21KU-X dual frequency contactless proximity card reader, 125 kHz / 13.56 MHz
  • Typical maximum read range: 1.0” – 3.0” (2.5 – 7.6cm) dependent upon proximity card type and environmental conditions
  • Power supply: USB self-powered
  • Indicators: Adjustable beeper volume (off, low, medium, high)
  • Operating humidity range: 5% to 95% relative humidity, non-condensing
  • Operating temperature range: -20° to 150°F (-30° to 65°C)
  • Certifications: FCC, Industry Canada, CE Mark, RCM, RoHS, Reach, and more than 50 countries
Biometric Sensor Specifications
  • Capacitive HID® TouchChip TCET Module
  • FIPS 201 compliance
  • Resolution: 508 DPI meets FBI iAFIS requirement
  • 8-bit per pixel grayscale
  • Up to 12 frames per second capture rate
  • 8-bit RAM interface
  • 20-pin 0.5mm pitch flat flex cable connector
  • 27 x 20.4mm outline & only 3.5mm thick (~1/8”)
  • Power: 20mA during capture (typical)
  • 1ma during sleep (typical)
  • 4.4v to 5.5v (standard image mode, no bezel)
  • 4.5v to 4.6v (FIPS-201 & EIM mode w/ bezel)
  • +/- 15 KV ESD (IEC 61000-4-2 level 4)
  • 2M fingerprint placements (FIPS-201 standard coating)
  • 4M fingerprint placements (SteelCoat coating)
  • Environment: -30 to +85C operating
  • -40 to +85 storage
  • RoHS compliant
LinkSmart Lite Demo

KSI-1802R SX HFFFB-21

Compact Infection Control and Multifactor Authentication for Clinical Workstations

The KSI-1802R SX HFFFB-21 is a compact, backlit medical-grade keyboard that combines RFID badge authentication, fingerprint biometrics, and desktop infection control in a single device. Built for shared clinical environments and mobile carts, it supports secure access and hygienic workflows without adding peripheral complexity.

Cleaning Button
Dual-Frequency RFID
EPCS-Ready
Fingerprint Biometrics
Multifactor Authentication

Ready to Secure Your Shared Workstations?

Explore deployment options, integration compatibility, and authentication workflows.
